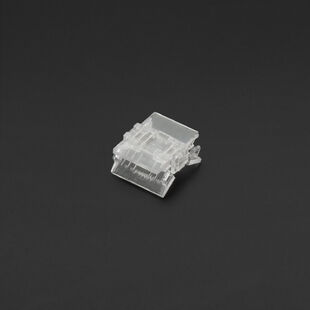

12mm Clampdown RGBW COB LED Strip Joiner

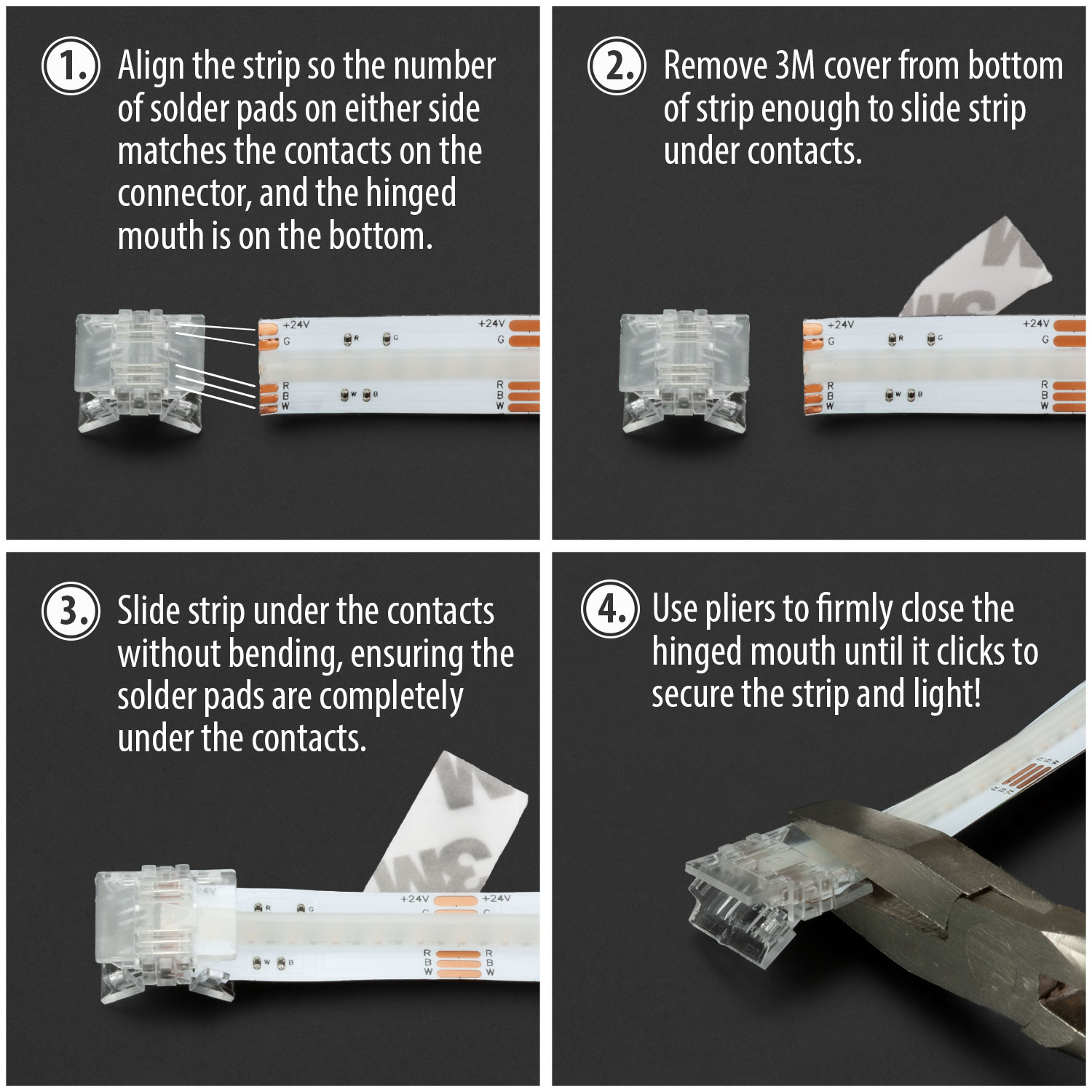

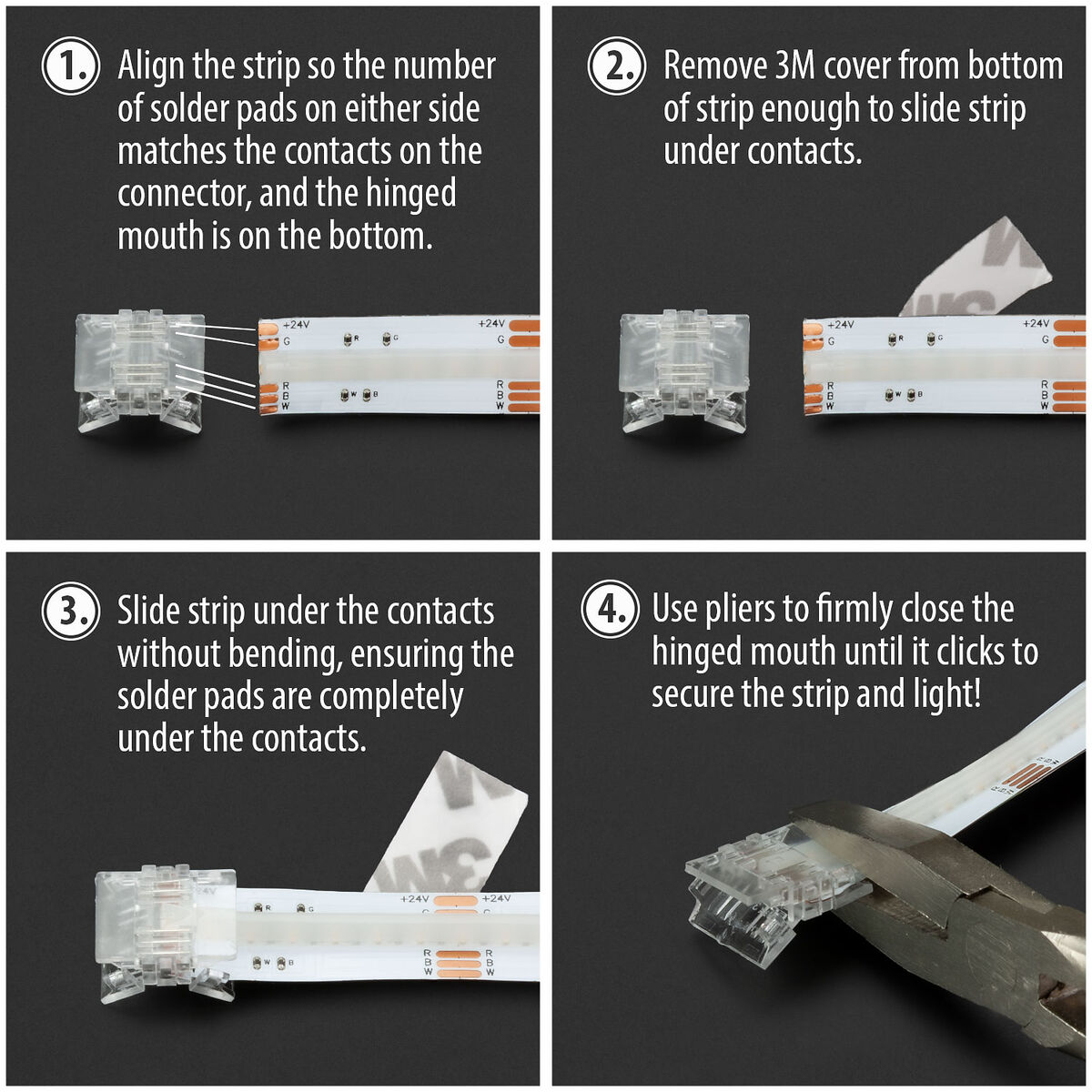

Solid Apollo's 12mm Clampdown RGBW COB LED strip joiner is a useful accessory for connecting two 12mm RGBW COB LED strips without soldering. Installation is quick and simple with easy to use clampdown terminals. Simply peel the adhesive backing on the LED strips, align strips' copper pads to match inside the joiner, insert the strips, and press down firmly on the hinged mouth with pliers to create a strong connection.

This transparent joiner is designed to allow the COB diffuser to fit inside the unit without obscuring any light and to make a connection with the COB's offset contacts. The clampdown terminals puncture through the printed circuit board forming a secure connection that can withstand pulls and tugs. With its ultra-low profile, this joiner can fit in channels 14mm wide or larger allowing expansive project customization.

Please Note: This joiner has two terminals on one side and three on the other to match the RGBW COB strips. Make sure your strip's copper pads are properly aligned before closing the hinged mouth.

Main Features:

• For Use With RGBW COB LED Strips

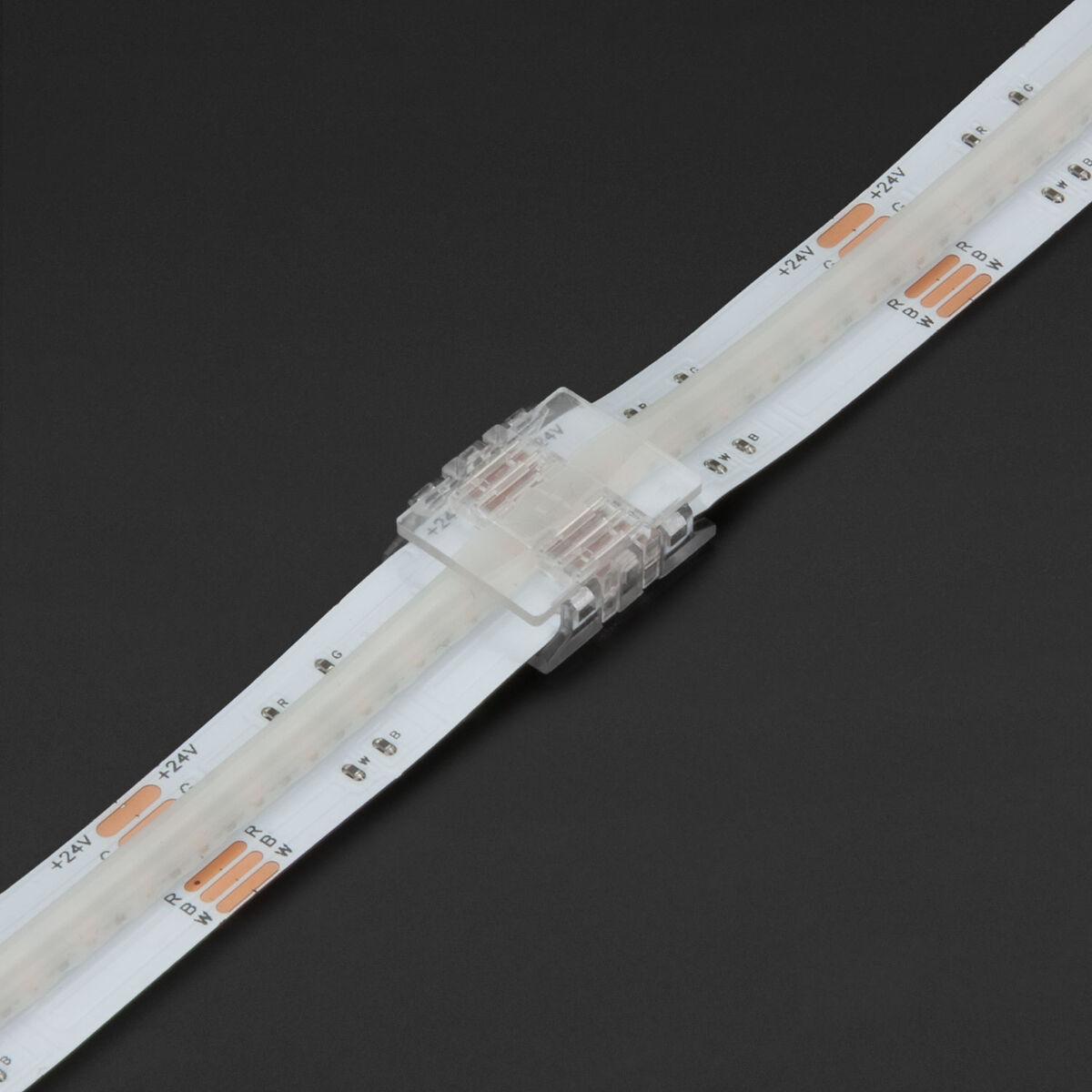

• Easily Connect Two RGBW COB LED Strips
• Designed for Quick On-Field Installations
• Creates Strong, Permanent Connections

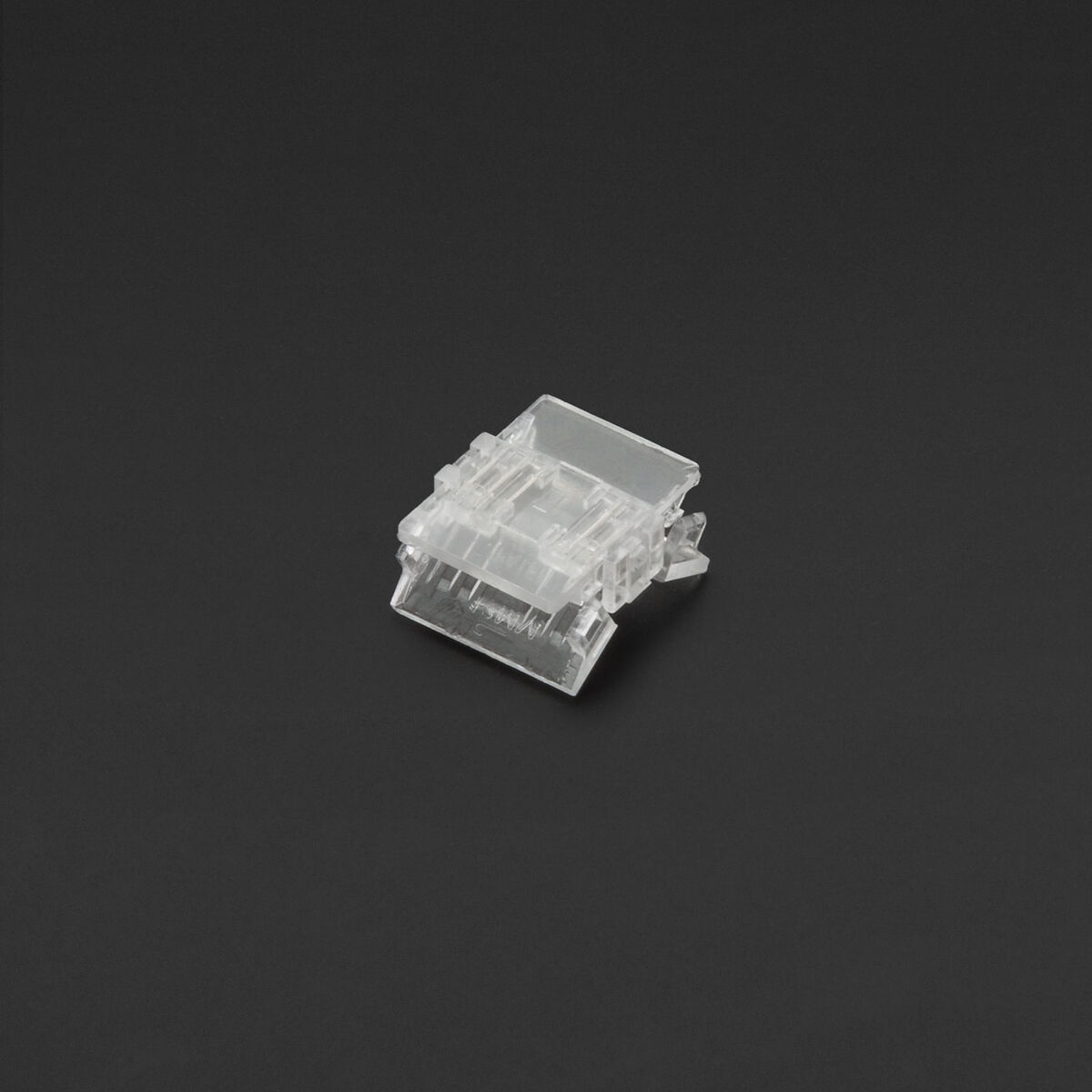

• Transparent Connector Heads
• Ultra-low Profile

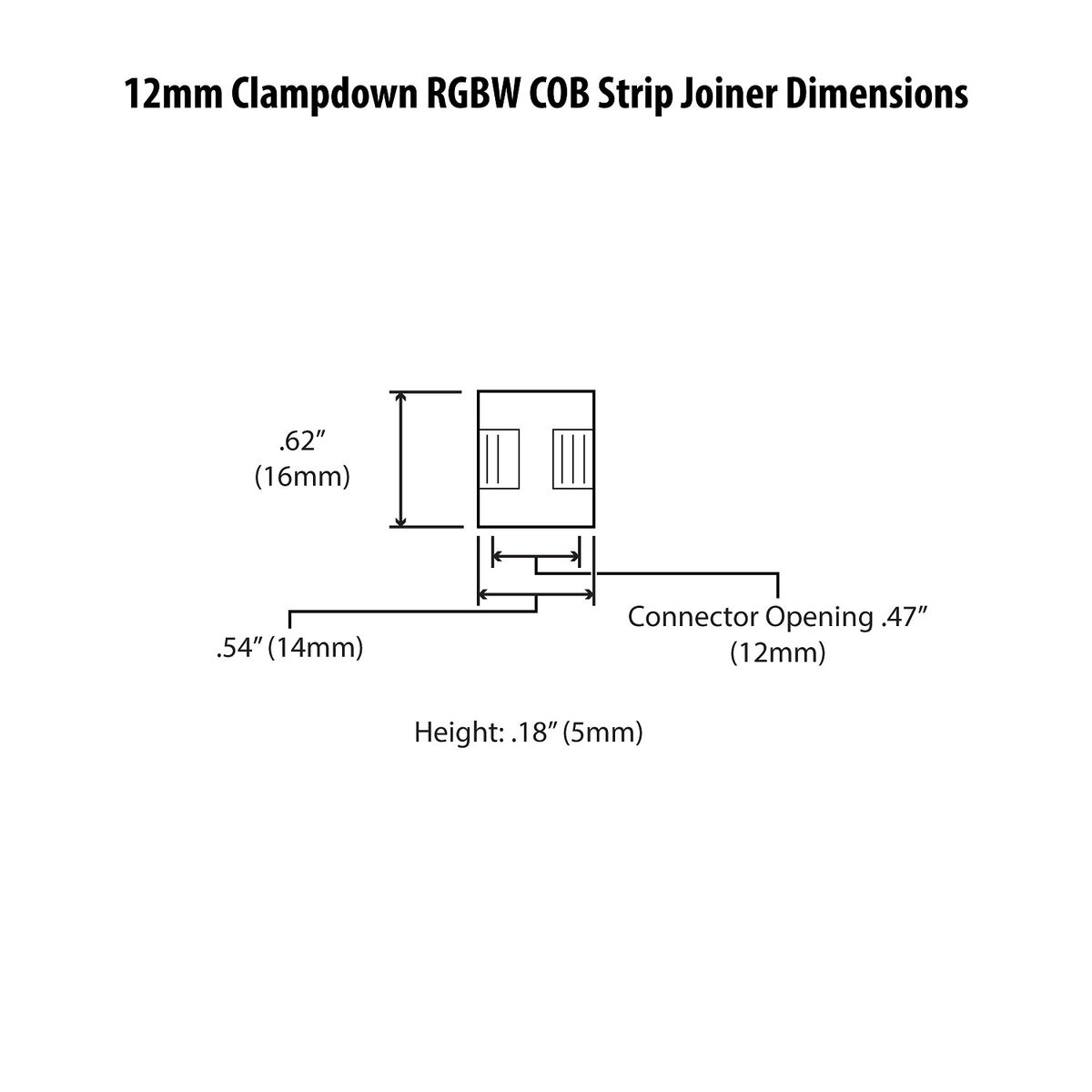

• Fits Channels 14mm Wide or Larger
• .62in in Total Length
