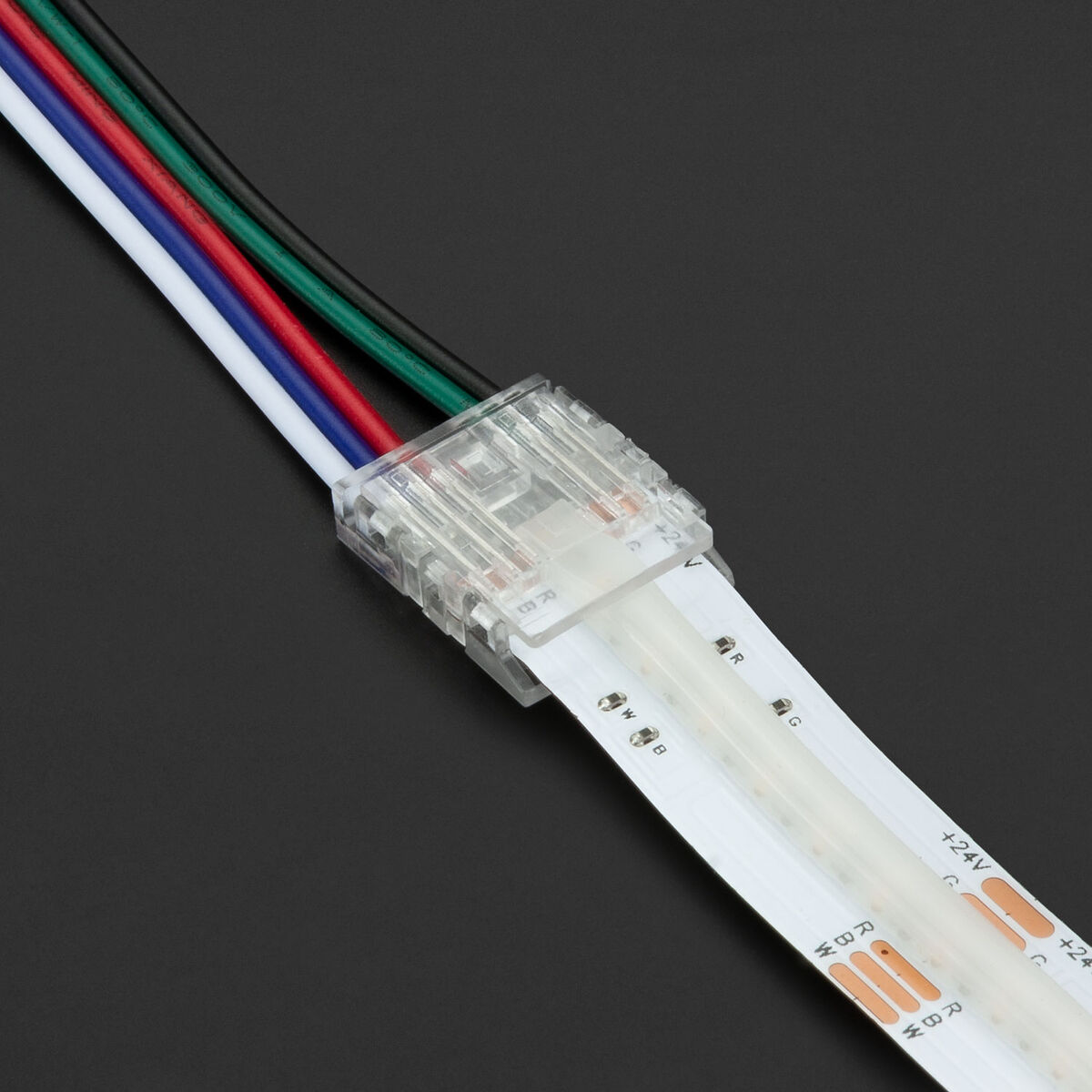

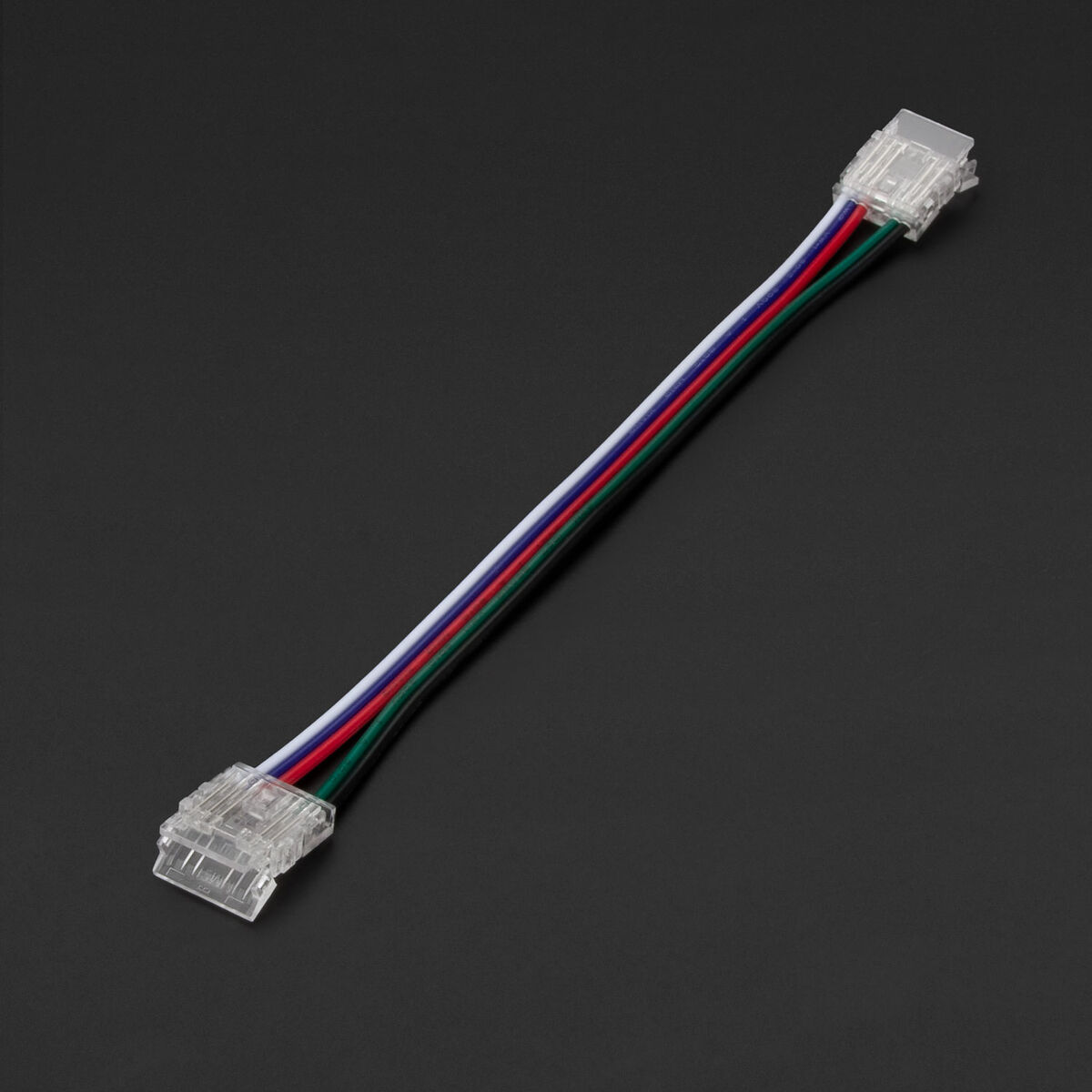

12mm Clampdown RGBW COB LED Strip Interconnector

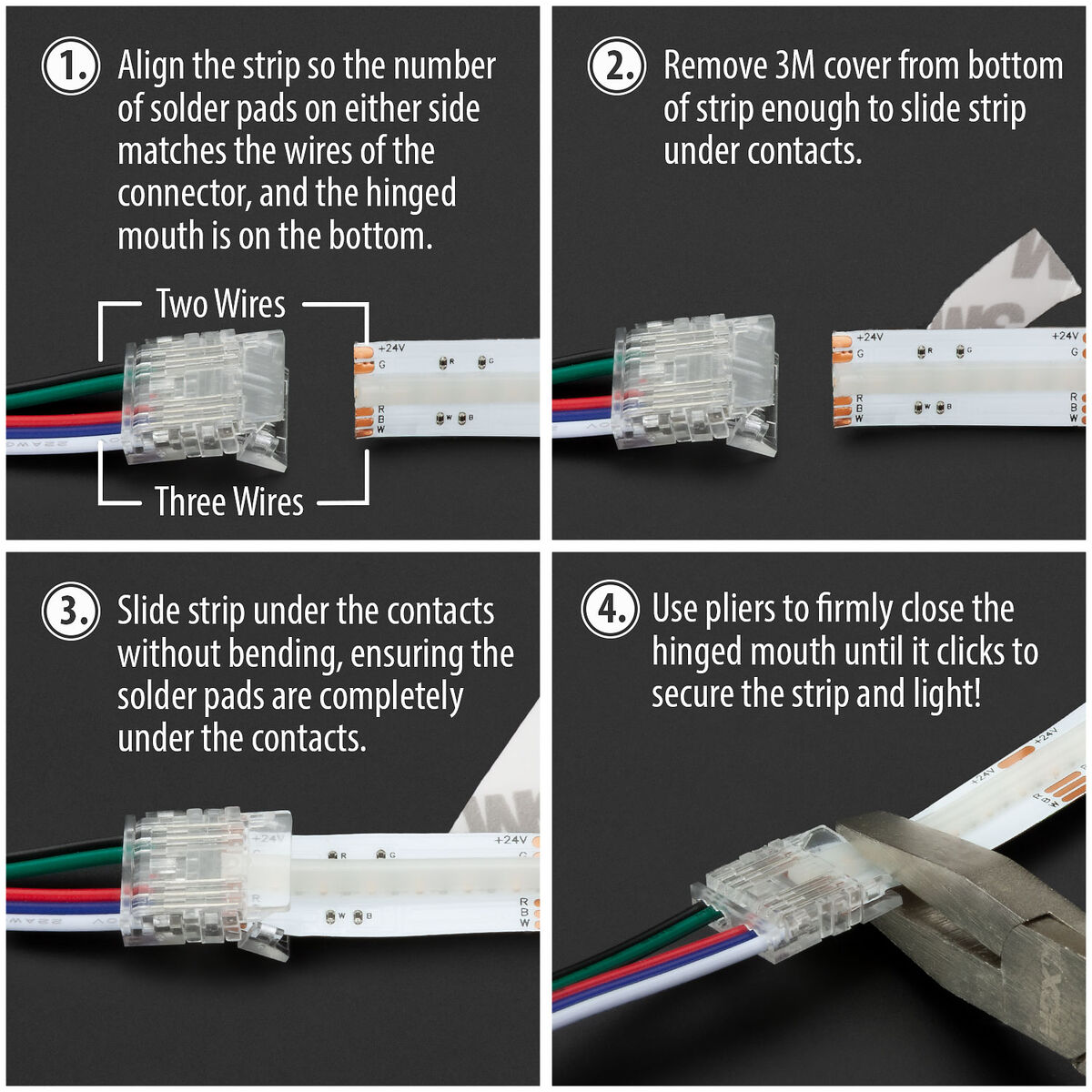

Solid Apollo's 12mm Clampdown RGBW COB LED strip interconnector is a useful accessory for connecting two RGBW COB LED strips without soldering. Installation is quick and simple with easy to use clampdown terminals. Simply peel the adhesive backing on the LED strips, align strips' copper pads to the connector, insert the strips, and press down firmly on the hinged mouth with pliers to create a strong connection.
The transparent connector heads are designed to allow the COB diffuser to fit inside the heads without obscuring any light. The clampdown terminals puncture through the printed circuit board forming a secure connection that can withstand pulls and tugs, perfect for making connections around corners and other obstacles. With its ultra-low profile, this connector can fit in channels 14mm wide or larger allowing expansive project customization.
Please Note: This joiner has two terminals on one side and three on the other to match the RGBW COB strips. Make sure your strip's copper pads are properly aligned before closing the hinged mouth.
Main Features:
- For Use With RGBW COB LED Strips
- Easily Connect Two RGBW COB LED Strips

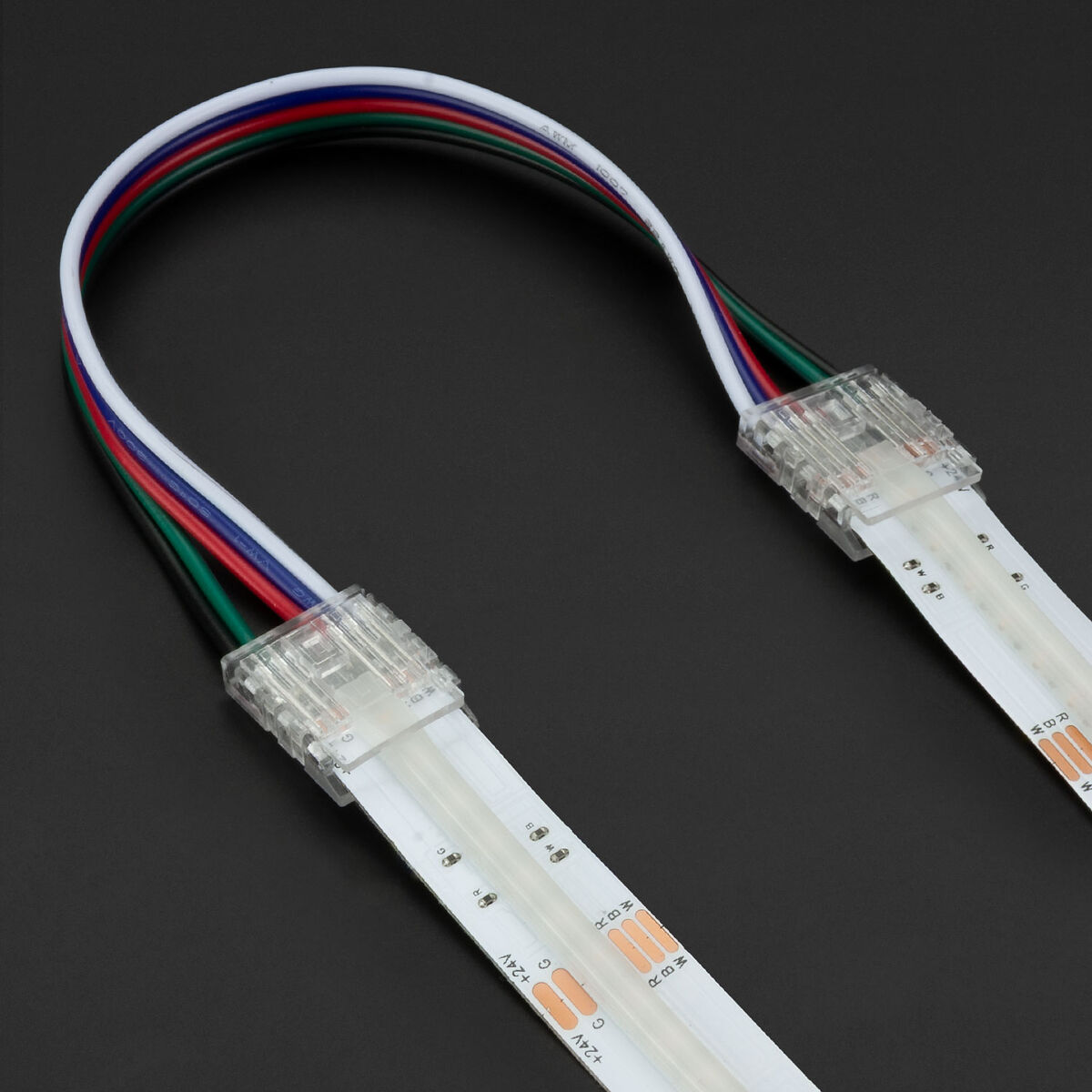

- Perfect for Going Around Corners
- Creates Strong Connections

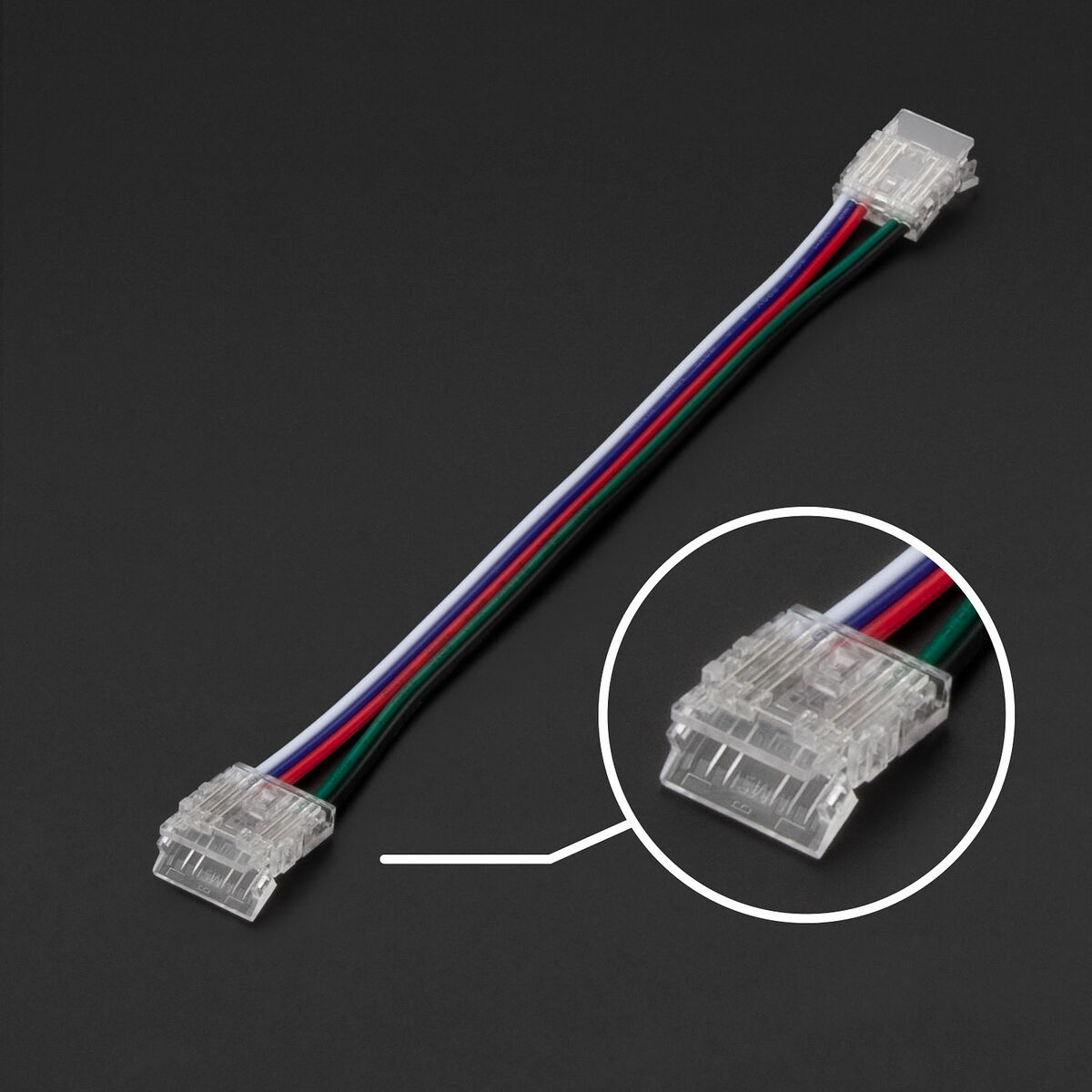

- Transparent Connector Heads
- Ultra-low Profile
- Fits Channels 14mm Wide or Larger

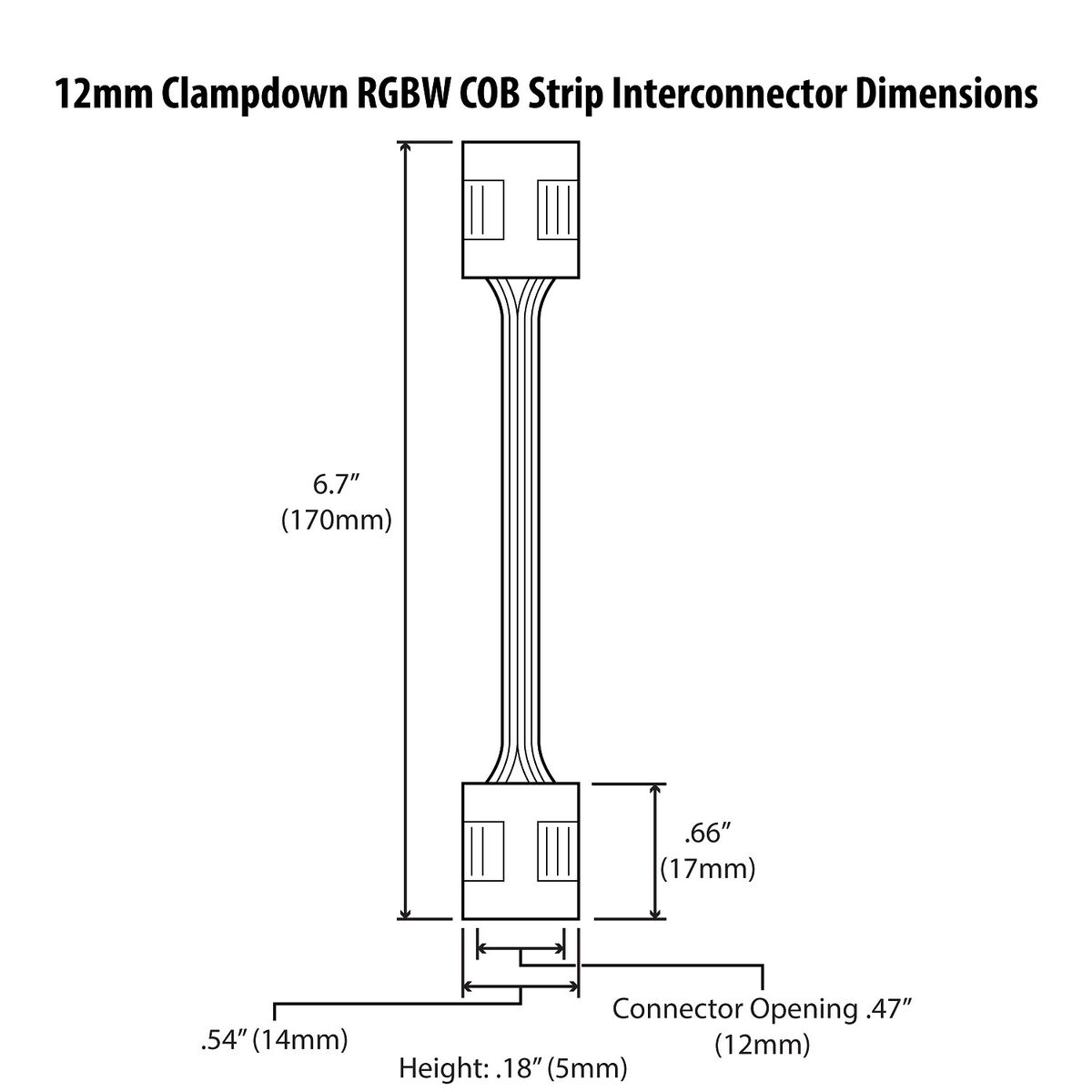

- 6.7in in Total Length
| Input Voltage | 12 or 24V DC | |
| Max Amp | 3.5A | |
| Warranty | 3 Years | |
| Weight | 0.01 Lbs | |
| Dimensions | 6.7in Total Length | |
| Certificates | CE, RoHs | |
